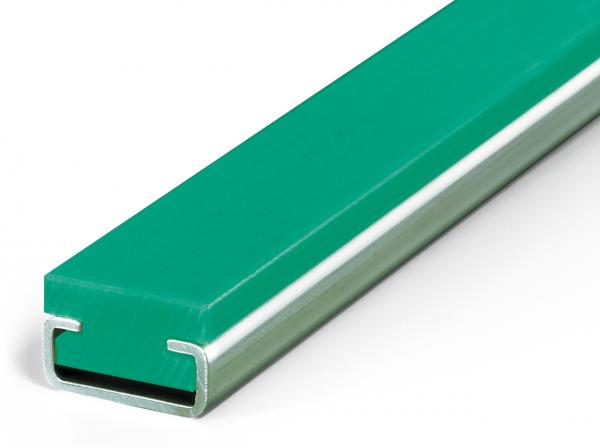

Type CF
Article IDs for fixed lengths available at the link below. Also available in "S" 1000 Material.
For full Murtfeldt listings, click here.

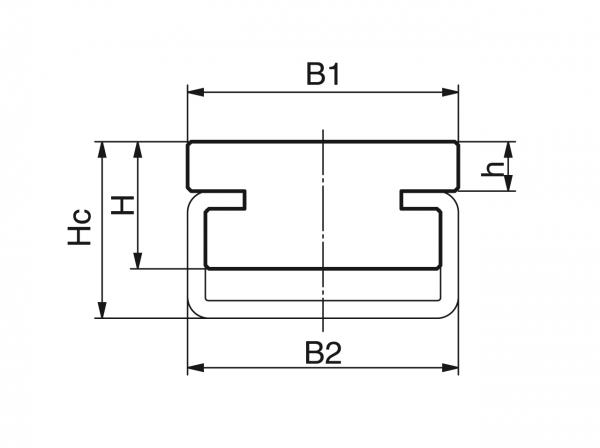

| C profile | B1 | B2 | H | Hc | h | Material | 2000mm Length Article ID |
|---|---|---|---|---|---|---|---|
| C1 | 20 | 24 | 5 | 6 | 1 | S Green | 211010001 |
| Galvanized | 351020001 | ||||||
| C1 | 20 | 24 | 5 | 6 | 1 | S Green | 211010001 |
| V2A | 351020101 | ||||||
| C1 | 20 | 24 | 10 | 11 | 5.8 | S Green | 211010002 |
| Galvanized | 351020001 | ||||||
| C1 | 20 | 24 | 10 | 11 | 5.8 | S Green | 211010002 |
| V2A | 351020101 | ||||||
| C3 | 20 | 20 | 10 | 14 | 4 | S Green | 211010003 |
| Galvanized | 351020003 | ||||||
| C3 | 20 | 20 | 10 | 14 | 4 | S Green | 211010003 |
| V2A | 351020103 | ||||||
| C3 | 20 | 20 | 14 | 17 | 7 | S Green | 211010004 |
| Galvanized | 351020003 | ||||||
| C3 | 20 | 20 | 14 | 17 | 7 | S Green | 211010004 |
| V2A | 351020103 | ||||||
| C3 | 20 | 20 | 16 | 20 | 10 | S Green | 211010005 |
| Galvanized | 351020003 | ||||||
| C3 | 20 | 20 | 16 | 20 | 10 | S Green | 211010005 |
| V2A | 351020103 | ||||||
| C5 | 28 | 28 | 10 | 15 | 3 | S Green | 211010006 |
| Galvanized | 351020005 | ||||||
| C5 | 28 | 28 | 10 | 15 | 3 | S Green | 211010006 |
| V2A | 351020105 | ||||||
| C5 | 28 | 28 | 14 | 18 | 6 | S Green | 211010007 |
| Galvanized | 351020005 | ||||||
| C5 | 28 | 28 | 14 | 18 | 6 | S Green | 211010007 |
| V2A | 351020105 | ||||||
| C9 | 38 | 38 | 12 | 22 | 4 | S Green | 211010008 |
| Galvanized | 351020009 | ||||||
| C9 | 38 | 38 | 12 | 22 | 4 | S Green | 211010008 |
| V2A | 351020109 | ||||||
| C9 | 38 | 38 | 18 | 25 | 7 | S Green | 211010009 |
| Galvanized | 351020009 | ||||||
| C9 | 38 | 38 | 18 | 25 | 7 | S Green | 211010009 |
| V2A | 351020109 | ||||||
| C12 | 60 | 60 | 20 | 30 | 10 | S Green | 211010010 |
| Galvanized | 351020012 | ||||||
| C12 | 60 | 60 | 20 | 30 | 10 | S Green | 211010010 |
| V2A | 351020112 | ||||||
| C4 | 50 | 50 | 18 | 20 | 10 | S Green | 211010011 |
| Galvanized | 351020004 | ||||||
| C4 | 50 | 50 | 18 | 20 | 10 | S Green | 211010011 |
| V2A | 351020104 | ||||||
| C6 | 80 | 80 | 18 | 20 | 10 | S Green | 211010012 |
| Galvanized | 351020006 | ||||||
| C6 | 80 | 80 | 18 | 20 | 10 | S Green | 211010012 |
| V2A | 351020106 |
